Series：CL Series
Model：COLOR Spot 1200/700 EF
Coding：YT-0202B/YT-0201B
♦ Communication Protocol: USITT DMX-512, supports RDM

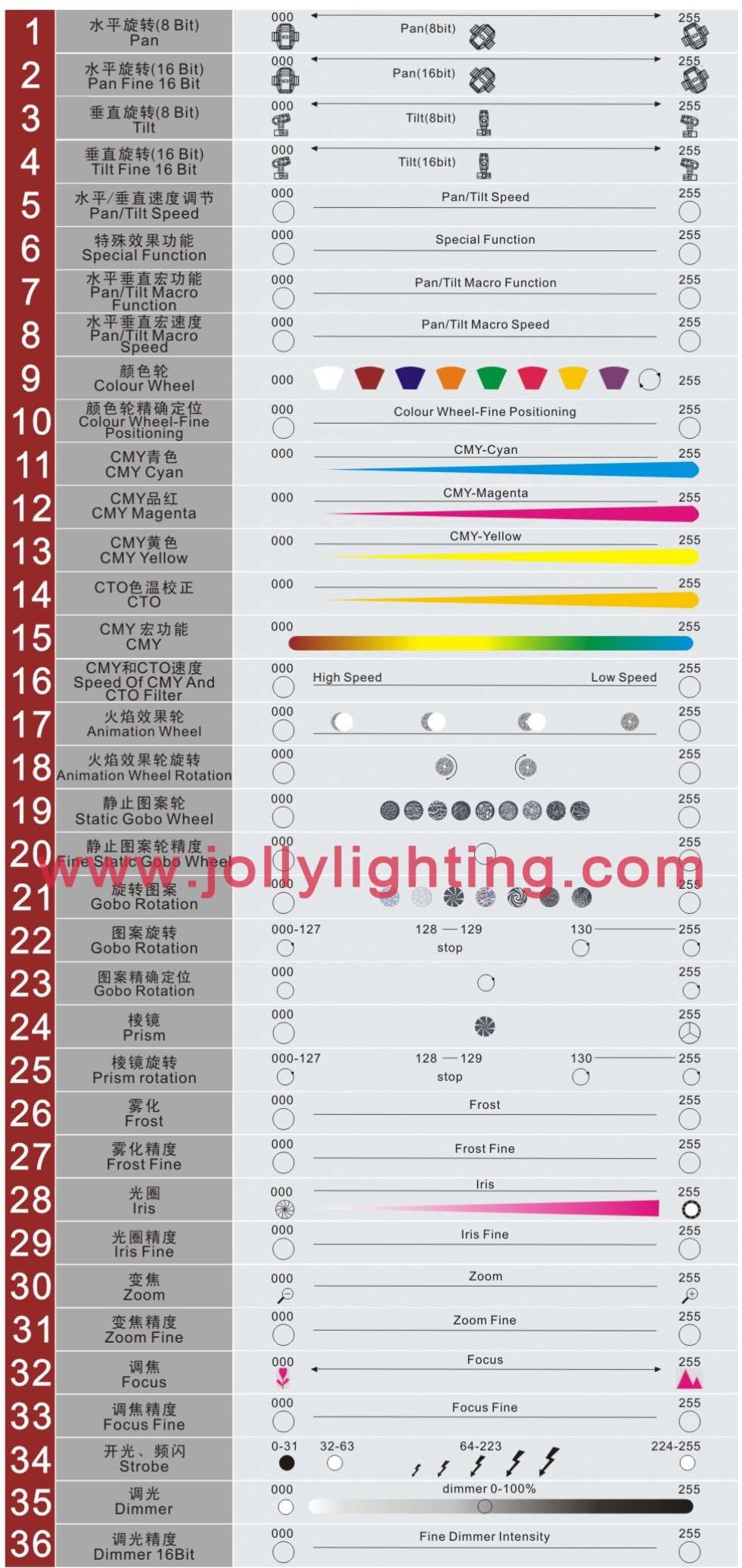

♦ Control Channel: 26/28/31/34/36 five kinds of DMX control modes
♦ Source: Lamp holder: PGJX50 Bulb Type: PHILIPS MSR GOLD 1200/700 FastFit
♦ Rectifier: electronic ballast or magnetic ballast
♦ Power: Input voltage 198-260V, 50-60HZ
♦ Power: 1500 / 930W, AC220V / 50HZ
♦ Color Wheel: 7 interchangeable gobos + white glass
♦ CMY: Green: 0-100%, magenta: 0-100%, Yellow: 0-100%
♦ CTO: 0-100%
♦ Flame effect wheel: replaceable, multi-angle positioning rotatable
♦ Fixed gobo wheel: 9 replaceable metal patterns + white
♦ Rotating gobo wheel: 7 interchangeable gobos + white glass
♦ Pattern size: diameter 26.9mm, 22.0mm inner diameter
♦ Atomization: Independent, adjustable
♦ Dimmer / Strobe: 0-100% mechanical linear dimming and can speed stroboscopic
♦ Aperture: electric, linear
♦ Motorized focus and zoom: 15 ° -51 °
♦ Display: English LCD graphics display
♦ Saving mode: When the dimmer is closed, supports saving mode, or so the CMY color film closed (black color), the bulb automatically reduce power consumption by 50% and extend lamp life, increase lamp stability
♦ Scan: horizontal 530 °, 280 ° vertical
♦ Mechanical parameters: height 740mm, width 455mm, depth 535mm, Weight 33.1kg (electronic ballast), GW 73.5kg
♦ Fixed options: horizontal / vertical mechanical lock
♦ Installation: 8 1/4 inch lock position, two "Ω" shaped bracket with a 1/4 inch quick lock
♦ Operating Temperature: Maximum ambient temperature: 40 ℃ maximum surface temperature: 120 ℃
Relevant information within this site is for reference only, all products to prevail in kind,
Subject to change without notice, hung color lighting reserves the final interpretation.
According to customer demand, to achieve functional customization.
